Intro

SOCFortress integration and visualization tools allow security analysts the visualization and triage of Akamai WAF security events using a single pane of glass.

About Akamai WAF

Akamai Web Application Firewall (WAF) is a cloud-based security solution designed to protect web applications and websites from various online threats and cyberattacks. Akamai is a prominent content delivery network (CDN) and cloud service provider, and their WAF service is one of the many offerings in their security portfolio.

Key aspects of Akamai Web Application Firewall:

Cloud-Based Protection: Traffic to your web applications is routed through Akamai’s global network of servers. This allows for near real-time threat detection and mitigation without the need for on-premises hardware or software.
Security Policies: Specify rules and configurations for protecting your web applications. These policies can be customized to match the specific needs and vulnerabilities of your applications.
Threat Detection: The WAF uses various detection techniques to identify and block a wide range of web application threats, including SQL injection, cross-site scripting (XSS), cross-site request forgery (CSRF), and other common attack vectors.
Rate Limiting and Bot Management: Enforce rate limits to prevent abuse of your web applications, such as limiting the number of requests from a single IP address. It also includes bot management capabilities to distinguish between legitimate bots and malicious ones.
Real-Time Updates: Akamai continuously updates its threat intelligence and security rules to adapt to evolving threats. This ensures that your web applications are protected against new and emerging vulnerabilities.
Scalability and Performance: Akamai’s global network of servers ensures that the WAF can handle high levels of traffic and provide low-latency protection, even during traffic spikes or distributed denial-of-service (DDoS) attacks.
Monitoring and Reporting: The WAF provides real-time monitoring and reporting features, allowing you to track security events, analyze traffic patterns, and gain insights into the security posture of your web applications.
Compliance and Regulatory Support: Helps organizations meet various compliance requirements, including those outlined by standards such as PCI DSS (Payment Card Industry Data Security Standard) and GDPR (General Data Protection Regulation).
Customization: You can customize the rules and policies to meet the specific security needs of your web applications. This flexibility is essential for fine-tuning security measures.
Integration: Akamai WAF can be integrated with other security tools and services, as well as with your existing infrastructure, through APIs and plugins.

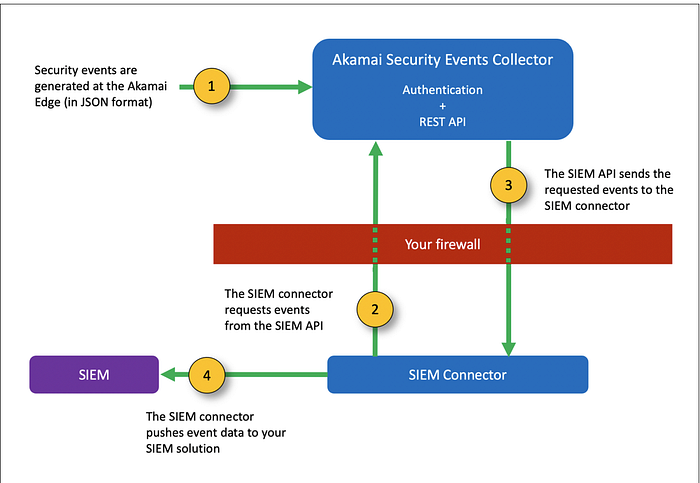

Ingesting Akamai WAF logs and events

Reference: https://github.com/akamai/siem-integration-connector-packages

Akamai CEF Connector:

Verify Java version (Linux): Use the command “java -version” to verify that your JRE is installed and available. site (Java Platform, Standard Edition) or installed from a software distribution package on Linux.
Hardware Requirements: 2 CPU cores, 6GB RAM, 2GB Free Disk Space, Run a Linux Kernel greater than 2.6

Installation Instructions

Retrieve the latest CEFConnector distribution package from the Akamai Support Page and unzip the distribution package anywhere on the file system.
To install a service, create a symbolic link to bin/AkamaiCEFConnector.sh shell script in /etc/init.d.

You can execute the shell script with the following commands (start | stop | status | resetdb). (Resetdb will delete cefconnector.db which contains the last successful offset).

Modify the files “conf/CEFConnector.properties” with Akamai API details:

akamai.data.configs=
akamai.data.accesstoken=
akamai.data.clienttoken=
akamai.data.clientsecret=
akamai.data.baseurl=

Modify “conf/log4j2.xml” with syslog forwarder details:

        <!--
        CEF Syslog Configuration

            CEFHost: Remote CEF Syslog Server Host (example: 127.0.0.1)
            CEFPort: Remote CEF Syslog Server Port (example: 514)
            CEFProtocol: Remote CEF Syslog Server Protocol (UDP/TCP)

        -->

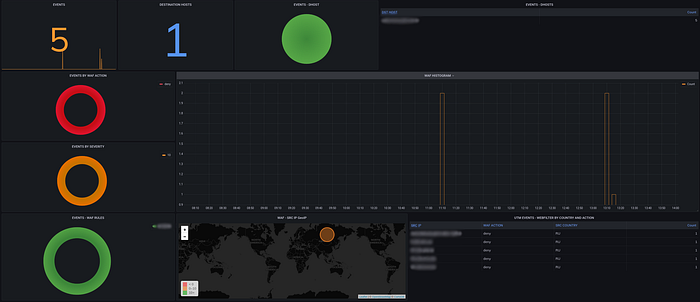

Visualizations
