Wazuh and NMAP integrarion for Network Vulnerability Scans

4 min readMar 22, 2023

Intro

Organizations are challenged by identifying assets across the enterprise and defining processes related to:

Identifying present vulnerabilities that might compromise those assets.
Classifying all detected vulnerabilities according to their severity and impact.
Evaluating the likelihood of existing vulnerabilities being exploited by external and/or internal actors.
Implementing vulnerability management processes.
Integrating vulnerability management in risk assessment.

The EDR solution as implemented by SOCFortress includes a vulnerability scan module capable of gathering the agent’s operating system and installed software and running all the information collected against the NIST CVE Database.

With the NMAP integration described in this brochure the vulnerability detection capabilities part of SOCFortress’ service portfolio are extended to network devices and any other IT assets in an organization where the EDR agent can’t be installed.

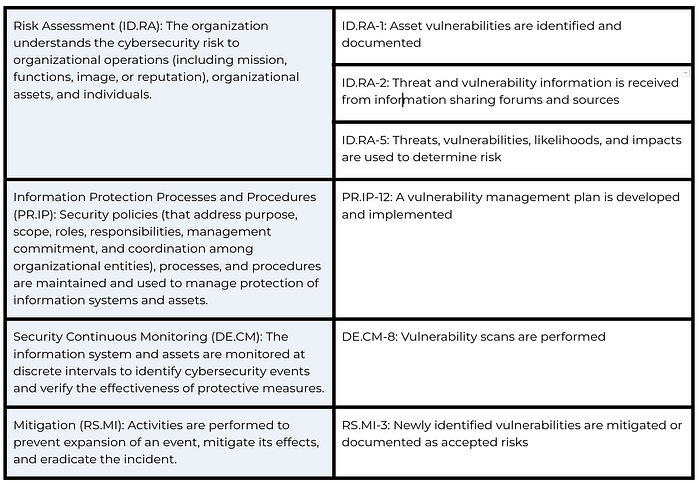

Vulnerability Management and NIST 800–53 Security Controls

Wazuh and NMAP for Ports Scans

Wazuh and NMAP integration to scan network subnets for open ports and services.

In this integration we’ll use python-nmap (https://pypi.org/project/python-nmap/) to scan for open ports/services found in different subnets.

NMAP port scanners can be installed in different Wazuh agents placed in different network segments. The NMAP output is converted to JSON and appended to each agent’s active responses file.

The scan can be scheduled via cron jobs to be executed once a week, month, etc. It can also be triggered using Wazu’s wodle command integration.
Requirements

NMAP installed in every agent to run the network scan.
python-nmap (https://pypi.org/project/python-nmap/) installed.

Python-nmap

Python-nmap is a python library which helps in using nmap port scanner. It allows to easilly manipulate nmap scan results and will be a perfect tool for systems administrators who want to automate scanning tasks and reports. It also supports nmap script outputs.

Python script run on agents

################################
### Python Script to Run Network Scans and append results to Wazuh Active Responses Log
### Requirements:
###     NMAP installed in Agent
###     python-nmap (https://pypi.org/project/python-nmap/)
### Replace the Array "subnets" with the subnets to scan from this agent.
### Do NOT include subnets with a network firewall in the path of the agent and the subnet.
################################
import nmap
import time
import json
nm = nmap.PortScanner()
#Add subnets to scan to the Subnets Array
subnets=['192.168.252.0/24','192.168.1.0/24']
for subnet in subnets:
    json_output={}
    nm.scan(subnet)
    for host in nm.all_hosts():
        json_output['nmap_host']=host
        for proto in nm[host].all_protocols():
            if proto not in ["tcp", "udp"]:
                continue
            json_output['nmap_protocol']=proto
            lport = list(nm[host][proto].keys())
            lport.sort()
            for port in lport:
                hostname = ""
                json_output['nmap_port']=port
                for h in nm[host]["hostnames"]:
                    hostname = h["name"]
                    json_output['nmap_hostname']=hostname
                    hostname_type = h["type"]
                    json_output['nmap_hostname_type']=hostname_type
                    json_output['nmap_port_name']=nm[host][proto][port]["name"]
                    json_output['nmap_port_state']=nm[host][proto][port]["state"]
                    json_output['nmap_port_product']=nm[host][proto][port]["product"]
                    json_output['nmap_port_extrainfo']=nm[host][proto][port]["extrainfo"]
                    json_output['nmap_port_reason']=nm[host][proto][port]["reason"]
                    json_output['nmap_port_version']=nm[host][proto][port]["version"]
                    json_output['nmap_port_conf']=nm[host][proto][port]["conf"]
                    json_output['nmap_port_cpe']=nm[host][proto][port]["cpe"]
                    with open("/var/ossec/logs/active-responses.log", "a") as active_response_log:
                        active_response_log.write(json.dumps(json_output))
                        active_response_log.write("\n")
                time.sleep(2)

This script can be placed in any folder in the agent’s file system and its execution can be scheduled using cron.

Detection Rules (Wazuh Manager)

<group name="linux,nmap,network_scan">
    <rule id="200400" level="3">
        <decoded_as>json</decoded_as>
        <field name="nmap_host">\.+</field>
        <field name="nmap_protocol">\.+</field>
        <description>NMAP: Network Scan Host $(nmap_host)</description>
        <options>no_full_log</options>
    </rule>
</group>

Scan Results — Wazuh Manager Alerts (examples)

{
   "timestamp":"2022-02-23T04:37:32.001+0000",
   "rule":{
      "level":3,
      "description":"NMAP: Network Scan Host 192.168.252.222",
      "id":"200400",
      "firedtimes":55,
      "mail":false,
      "groups":[
         "linux",
         "nmap",
         "netwprk_scan"
      ]
   },
   "agent":{
      "id":"017",
      "name":"ubunutu2004vm",
      "ip":"192.168.252.191"
   },
   "manager":{
      "name":"ASHWZH01"
   },
   "id":"1645591052.115711751",
   "decoder":{
      "name":"json"
   },
   "data":{
      "nmap_host":"192.168.252.222",
      "nmap_protocol":"tcp",
      "nmap_port":"443",
      "nmap_hostname":"_gateway",
      "nmap_hostname_type":"PTR",
      "nmap_port_name":"https",
      "nmap_port_state":"open",
      "nmap_port_product":"OPNsense",
      "nmap_port_reason":"syn-ack",
      "nmap_port_conf":"10"
   },
   "location":"/var/ossec/logs/active-responses.log"
}

NMAP and vulscan.nse.

Vulscan is a module which enhances NMAP to a vulnerability scanner. The NMAP option that enables version detection per service can be leveraged to determine potential flaws according to the identified product. The data is looked up in an offline version of VulDB.The NMAP scan will include all the CVE IDs detected and their description.

EPSS Integration.

The Exploit Prediction Scoring System (EPSS) is an open, data-driven effort for estimating the likelihood (probability) that a software vulnerability will be exploited in the wild. Its goal is to assist network defenders to better prioritize vulnerability remediation efforts.

While other industry standards have been useful for capturing innate characteristics of a vulnerability and provide measures of severity, they are limited in their ability to assess threats. EPSS fills that gap because it uses current threat information from CVE and real-world exploit data.

The EPSS model produces a probability score between 0 and 1 (0 and 100%). The higher the score, the greater the probability that a vulnerability will be exploited.

Integration in your visualization tool.

The data store where all the network scans information and found vulnerabilities is recorded can be accessed from your existing visualization tool.

Leverage your single pane of glass and visualize reports on detected ports open, CVEs found and their description and score, etc.
